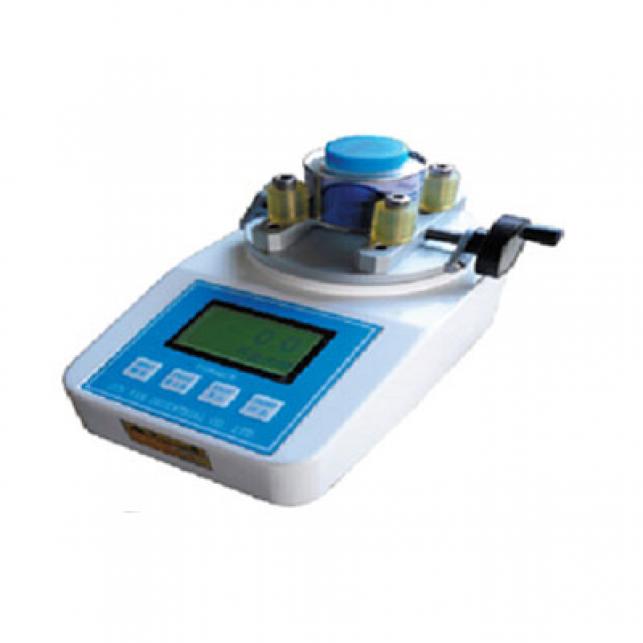

台製 攜帶式 扭力實驗機

台製 攜帶式 扭力實驗機 台製 攜帶式 扭力實驗機
台製 攜帶式 扭力實驗機 台製 攜帶式 扭力實驗機

產品簡介:

材料實驗
台製 攜帶式 扭力實驗機
使用高精度扭力傳感器,重複性精度好、壽命長、不易過載損壞



查看詢價表

產品詳細介紹

儀器
材料實驗
台製-攜帶式-扭力實驗機


TQ-T05A(上)




TQ-T05C(前)





TQ-T05D(左)




TQ-T05B(右)



特點:


使用高精度扭力傳感器,重複性精度好、壽命長、不易過載損壞。

準確度高,具有1/5,000最強解析度。

可設定上限,具備蜂鳴警告。




   Specifications

Capacity

10、20、50、100、200、500   kg-cm for selection

Accuracy

Within ± 0.5%

Language

English

One-key Zero

Press one key to zero easily

Maxmum Value

Track

The present torque

Peak

The maximun torque

First Peak

The first peak torque

Torque Unit

kg-m, kg-cm, lbf-in, lbf-ft, N-M, N-cm

Printer

With printer port    ( Printer is optional )

RS 232C

Available to connect with computerby RS-232 for
printing and displaying measuring graphs and data management

Dimension

180 mm ( L )  x  260 mm ( W )  x 160 mm ( H )

Weight

4.5 kg

Switching Power

AC 110 ~ 240 V, 50 / 60 Hz

Resolution

Forward and reverse each 1/ 5,000.

Cap Dia.

ø 14 ~ ø 110 mm

Applicable Tools

For measuring the torque performance of tamper-evident closures and seals, Etc...

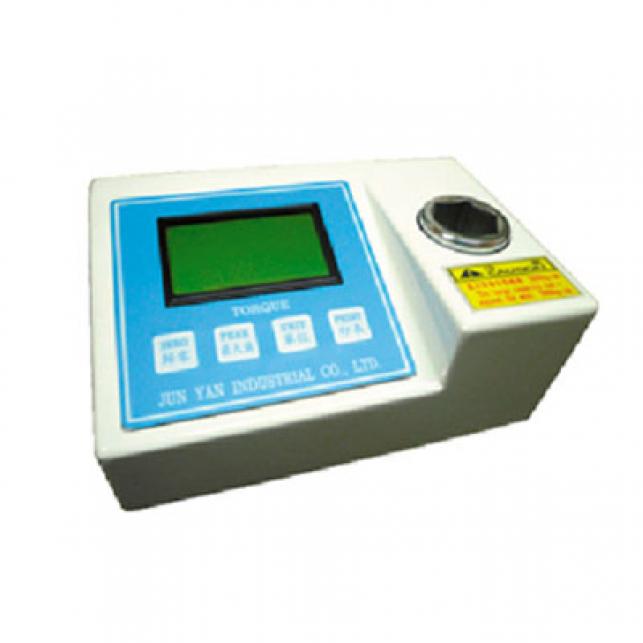

TQ-T05M



Specifications

Capacity

10, 20, 50, 100, 200, 500  kg-cm for selection

Accuracy

Within ± 0.5%

Language

English

One-key Zero

Press one key to zero easily

Maxmum Value

Track

The present torque

Peak

The maximun torque

First Peak

The first peak torque

Torque Unit

kg-m, kg-cm, lbf-in, lbf-ft, N-M, N-cm

Printer

With printer port    ( Printer is optional )

RS 232C

Available to connect with computer by RS-232 for
printing and displaying measuring graphs and data management

Dimension

180 mm ( L )  x  260 mm ( W )  x 160 mm ( H )

Weight

4.5 kg

Switching Power

AC 110 ~ 240 V, 50 / 60 Hz

Resolution

Forward and reverse each 1/ 5,000.

Cap Dia.

ø 14 ~ ø 110 mm

Applicable Tools

For measuring the torque performance of tamper-evident closures and seals, Etc...
